1、 Product Overview:

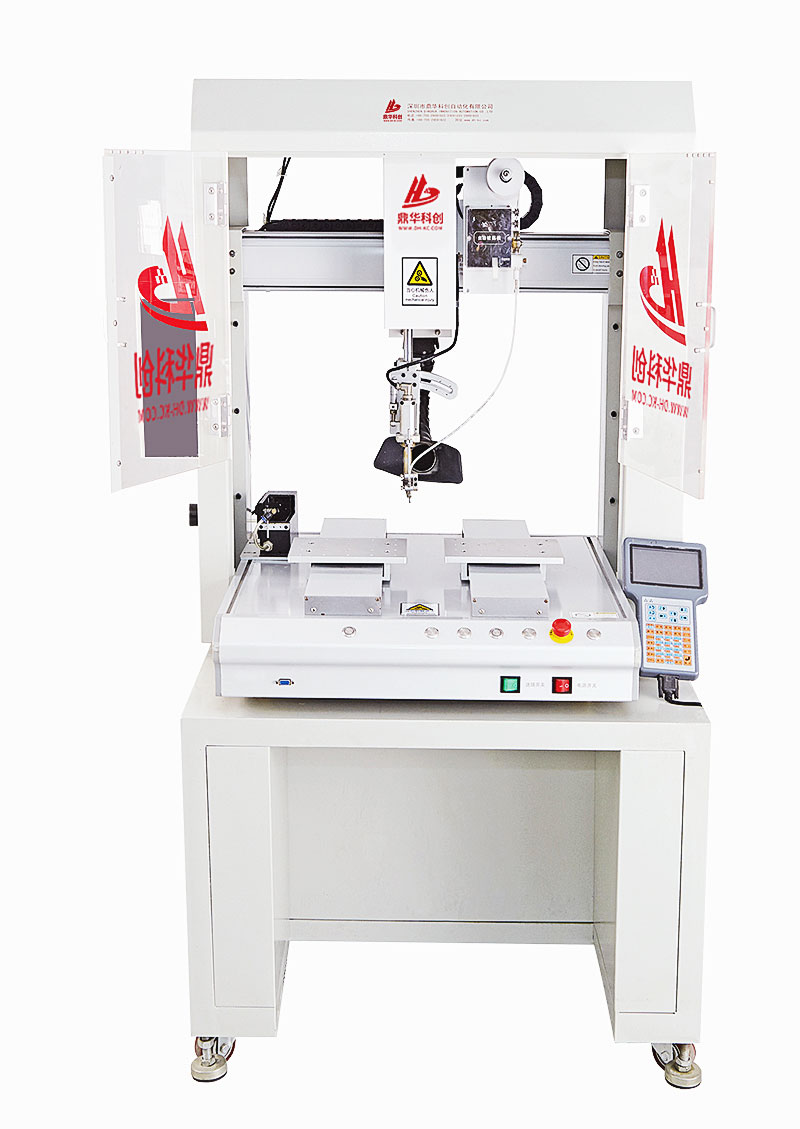

1. Five axis fully automatic soldering machine, single head dual Y with rotation function;

2. Meet production requirements such as spot welding, drag welding, arc welding, circular arc welding, and continuous welding of irregular curves;

3. Equipped with platform screen door protection;

3. Programming has a copy function, which can improve programming efficiency several times;

4. It can store 999 sets of programming files and easily switch between different products with just one click, without the need for further programming;

5. Equipment platform dimensions can be customized according to customer needs.

2、 Performance Description:

1. The single point programming method allows direct input of welding coordinates, and the device can perform point-to-point and block to block replication when writing work programs, reducing program writing time and making it easy to learn. The trajectory welding points can be globally modified.

2. Simple operation teaching box, editable continuous and fast spot welding, guiding the end of the movement to reach the welding point position. Set product replacement intervals, implement a cyclic welding scheme, and improve operational efficiency.

3. The device can store 999 operating programs, and the same machine can solder 999 different products.

4. The parameters between solder joints can be flexibly interchanged, with automatic calculation of touch up points, rotation correction function, optimization function, and misoperation correction function. The solder parameter module can be imported, and the speed of each point can be independently debugged and set. The file name can be entered in Chinese, English, and numbers.

5. Flexible and diverse soldering methods, supporting spot welding, drag welding, arc welding, circular arc welding, and continuous welding of irregular curves. All process parameters can be set by the user to adapt to various difficult operations and micro soldering processes.

6. Chinese interface input, easy to learn and understand, no need for external teaching devices, more convenient and simple to debug than similar products.

7. Automatic tin feeding and breaking function, adjustable tin amount, precise tin control, can start tin feeding at any time, effectively meeting various soldering processes and improving machine efficiency.

8. Weller temperature control table, temperature can be precisely controlled with a temperature difference of ± 2 ° C. It can accurately adjust the temperature, time, and soldering speed, control the amount of soldering, and meet the requirements of uniform and high-quality soldering.

9. According to the customer's product, multiple spot welding joints can be selected for assembly, which is more suitable for welding array standard products.

10. The welding trajectory can be called at any time, and multiple welding trajectory files can be stored without the need for repeated editing

11. Equipped with computer-controlled motion, software programming, and the ability to perform multiple operations.

12. Equipped with a closed smoking hood to maintain clean air in the workshop, the equipment has an automatic cleaning function, which to some extent stabilizes the quality of soldering and extends the service life of the soldering iron tip.

3、 Product advantages:

1. Equipped with enclosed smoke hoods to maintain clean air in the workshop.

2. Customize high-strength soldering iron tips according to the product, with better welding effect, higher efficiency, and greater durability;

3. Trajectory solder joints can be created, added, or reduced, and can also be globally modified, making programming simpler and faster;

4. The card slot fixture design makes it very easy to remove, place, and replace products;

5. Tin feeding can be started at any time, effectively meeting various soldering processes and improving machine efficiency.

6. German imported WELLER soldering machine dedicated temperature control system, accurate temperature control, more durable;

7. Equipped with anti-collision function;

8. The demonstration box provides a foolproof programming experience, allowing any novice to proficiently operate the equipment within 2 hours;

9. Can be paired with automated conveyor belts to achieve fully automated operations;

10. Dual user management mode, giving engineers and operators different permissions;

11. The parameters between solder joints can be flexibly interchanged, and compensation points can be automatically calculated;

12. The tin feeding function can be activated at any time to improve the operational efficiency of the machine;

13. It has functions such as spot welding, drag welding, arc welding, circular arc welding, and continuous welding of irregular curves;

14. Equipped with rotation correction function, optimization function, and misoperation correction function;

15. Import soldering parameter module, each point's speed can be independently debugged and set;

16. The repeated motion accuracy of ± 0.02mm ensures precise welding position during the production process;

17. The file name can be entered with Chinese and English numbers and saved.
