Product Overview:

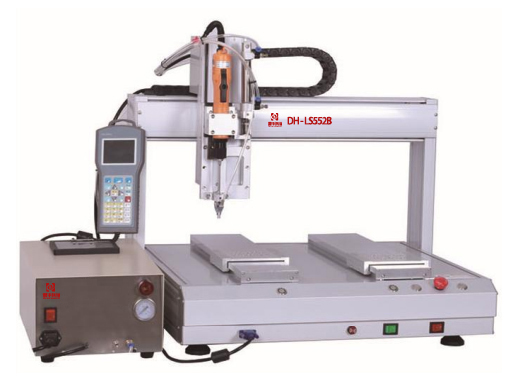

Dual platform blowing typeAutomatic screw locking machineThe handheld teaching programming box of the Taiwan Qilisu electric batch blowing feeding system is composed of a specially designed feeding machine with dual Y-axis working platform. The dual Y-axis work platform can be controlled separately on both sides according to actual operation, with continuous feeding, screw counting function and anti slip function, constant torque, and screw slip tooth and floating lock detection function. It has advantages such as saving labor, ensuring quality, and improving production capacity.

1、 Product features:

1. The handheld teaching box features a 320 * 240 high-resolution color screen and a fully Chinese operating interface, making it easy to learn and use;

2. Air blowing feeding method saves screw locking formation and improves locking efficiency;

3. Original imported brand electric batch, accurate and adjustable torque, stable performance;

4. When a malfunction occurs, you can choose to replay or skip mode;

5. It has functions such as regional array replication, platform replication, batch editing, and single step operation;

6. After editing the action parameters, download them to the controller through the serial port and run them independently offline. You can also

Save action parameters to the handheld box for easy access;

7. Equipped with an intelligent feedback system for screw tightening, it will sound an alarm in case of loose screws, slipping teeth, or missing locks;

8. Standard universal fixture suitable for screw locking of multiple models;

9. The elastic protection structure can protect the product from being crushed in abnormal situations;

2、 Performance Description:

1. Simple programming method, can directly input screw position coordinates, can demonstrate and reproduce coordinate positions, operate the teaching box easily, can set product replacement intervals, implement a cyclic screw locking scheme, and improve operational efficiency;

2. Chinese interface input, easy to learn and understand, no need for external teaching devices, more convenient to debug than similar products, simple and convenient, employees can quickly master operation and debugging;

3. The device can store 999 operating programs, and the same machine can process 999 different products. When changing products, simply replace the fixture and switch to the corresponding program to start production;

4. Accurate torque and easy and simple adjustment ensure the quality of screw locking;

5. The screw machine can real-time collect and record various data, upload it to the company server, including production quantity, production specifications, production time, fault information, fault codes, fault time, etc;

6. It is possible to display a distribution map of screw locking states on the interface, and distinguish different locking states by color. The screw locking states include "locked", "sliding teeth", and "floating lock";

7. You can choose to start locking screws from any hole on the product, or continue to lock screws from the previous unclosed position, and display which screw hole is currently being locked. The locking screws are random, flexible, and versatile;

8. Single point calibration allows users to automatically locate each single point, manually calibrate coordinates, and then calibrate the coordinates. Automatically locate to the next point, easy to debug, convenient, fast, and flexible;

9. Sliding teeth treatment, there are three ways to treat the screw hole positions of sliding teeth and floating locks. 'Re lock' can be used to re lock the screws. If the first re lock is unsuccessful, it can be re locked again until the locking is completed. You can also choose to re lock with or without screws, or choose 'skip'. You can skip the fault of ignoring the screw hole position and directly skip locking the next screw. Users can also set the 'skip count'. The number of times the machine is allowed to automatically skip the faulty screw hole position;

10. The program implantation method can be selected from direct input, teaching, insertion, deletion, copying, pasting, offset, array, mark point alignment and overall correction;

11. Adopting PLC control, combined with a specially developed locking screw control system, it has automatic position setting and reset function, ensuring the accuracy and stability of the equipment's repeated movement.

4、 Product advantages:

1. Cost saving: Can be operated by one person, one person can offset 4-5 people

2. Improve efficiency: 0.5-1.2 seconds per screw, only manual loading and unloading of products required

3. Accurate and reliable: with a repetition accuracy of 0.02mm, it has automatic detection and alarm functions for sliding teeth, floating locks, and missing locks

4. Widely applicable: Suitable for screws with specifications below M6

5. Customized requirements: Customers can customize according to their products and screw specifications, making it more user-friendly.
