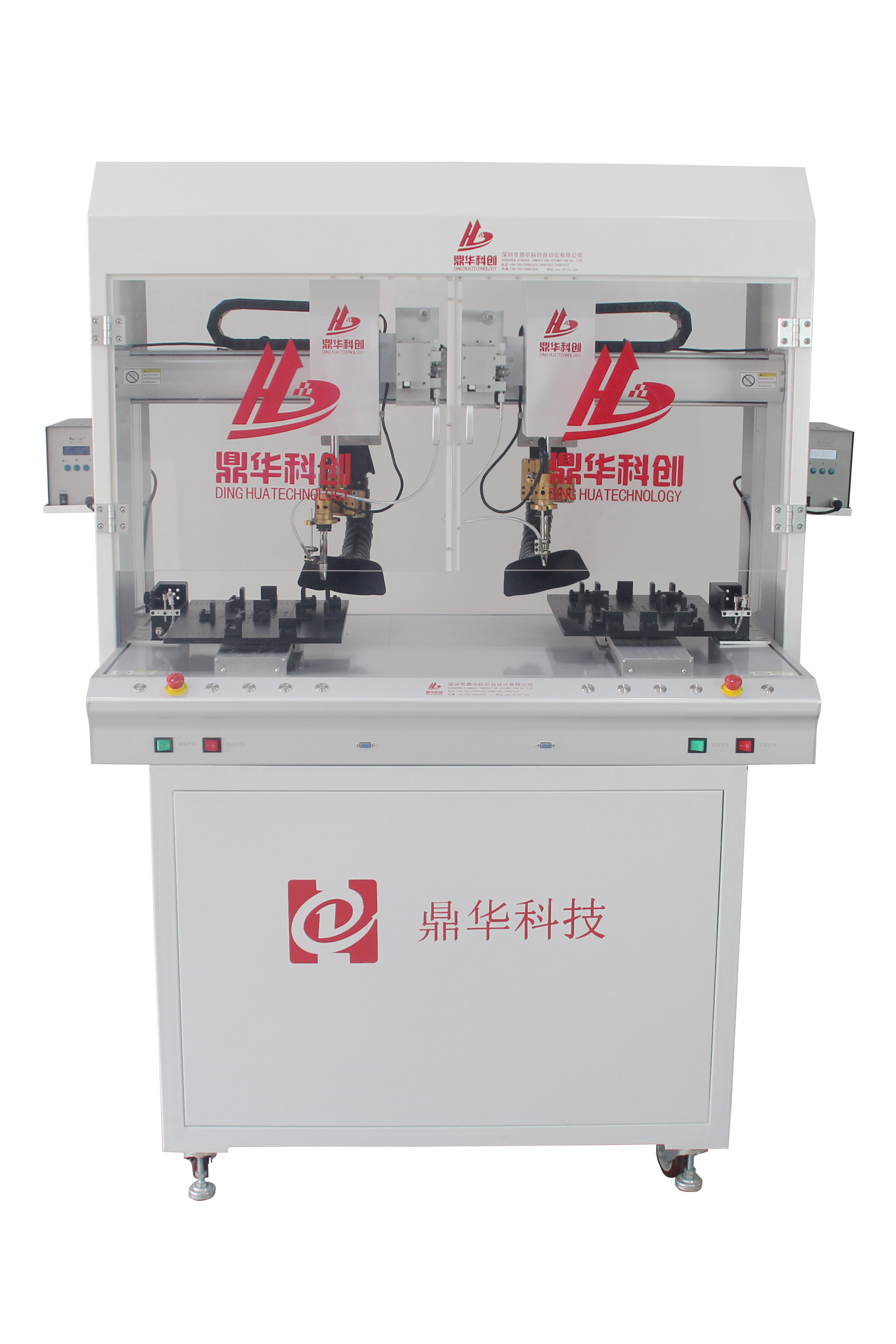

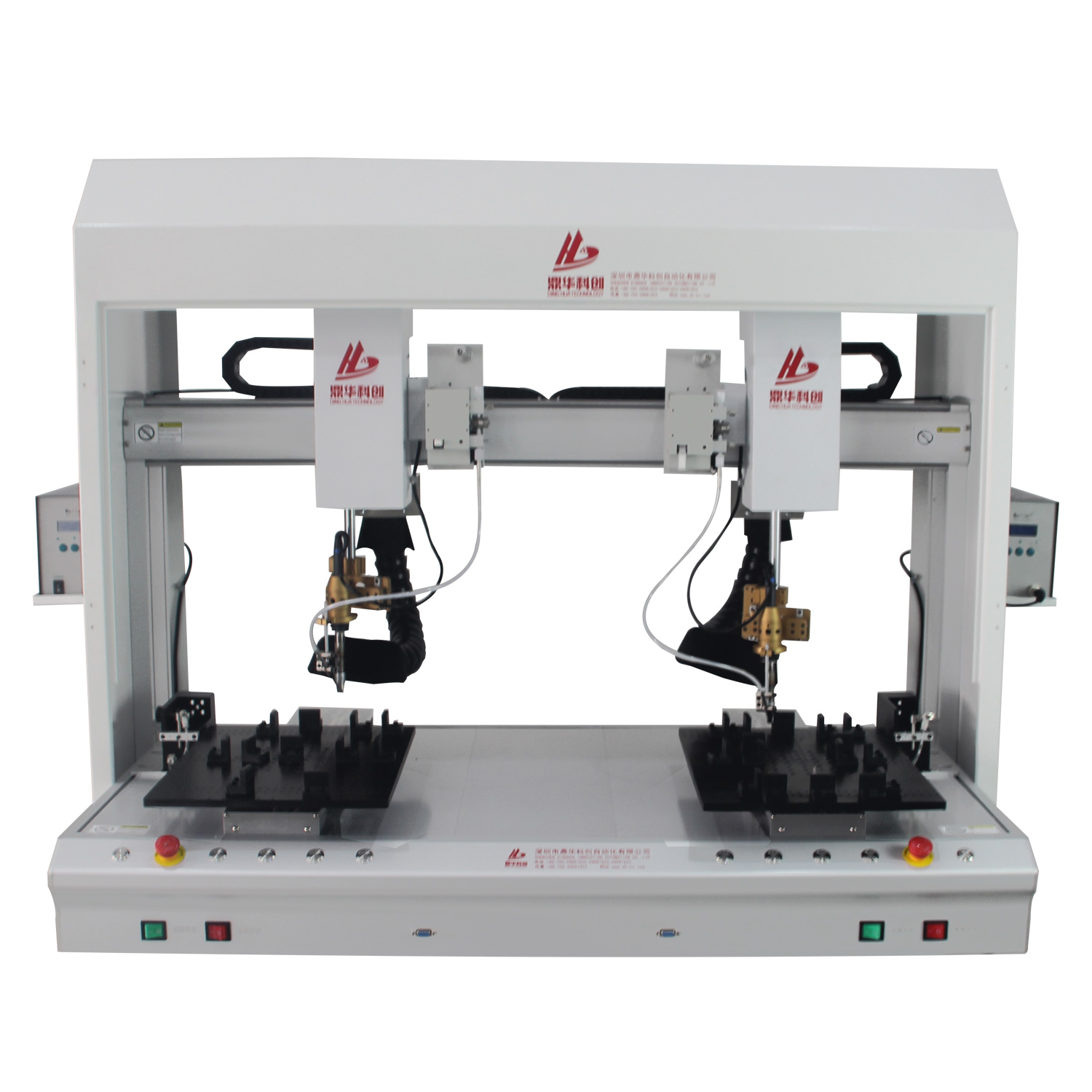

Multi functional fully automatic soldering machine

　　1、 Multi functional fully automatic soldering machine product overview:

The Dinghua multifunctional fully automatic soldering machine is a fully automatic soldering equipment independently developed and produced by Dinghua Kechuang Automation Company. It achieves four soldering iron tips working simultaneously, four times the work efficiency, truly saving labor and improving production capacity.

Equipment sizes can be customized according to customer needs, with simple and convenient operation to meet the spot welding or drag welding requirements of different products. Save labor, ensure quality, and improve production capacity.

　　2、 Multi functional fully automatic soldering machine performance description:

1. The single point programming method allows direct input of welding coordinates, and the device can perform point-to-point and block to block replication when writing work programs, reducing program writing time and making it easy to learn. The welding point trajectory can be globally modified.

2. Simple operation teaching box, editable continuous and fast spot welding, guiding the end of the movement to reach the welding point position. Set product replacement intervals, implement a cyclic welding scheme, and improve operational efficiency.

3. The device can store 999 operating programs, and the same machine can solder 999 different products.

4. The parameters between solder joints can be flexibly interchanged, with automatic calculation of touch up points, rotation correction function, optimization function, and misoperation correction function. The solder parameter module can be imported, and the speed of each point can be independently debugged and set. The file name can be entered in Chinese, English, and numbers.

5. There are two types of soldering methods available, including spot welding and drag welding. All process parameters can be set by the user to adapt to various difficult operations and micro soldering processes.

6. Chinese interface input, easy to learn and understand, no need for external teaching devices, more convenient and simple to debug than similar products.

7. It has automatic tin feeding and breaking functions, adjustable tin quantity, precise tin control, and can start tin feeding at any time, effectively meeting various soldering processes and improving machine efficiency.

8. Weller temperature control table, temperature can be precisely controlled with a temperature difference of ± 2 ° C. It can accurately adjust the temperature, time, and soldering speed, control the amount of soldering, and meet the requirements of uniform and high-quality soldering.

9. According to the customer's product, multiple spot welding joints can be selected for assembly, which is more suitable for welding array standard products.

10. The welding trajectory can be called at any time, and multiple welding trajectory files can be stored without the need for repeated editing

11. Equipped with computer-controlled motion and software programming functions, capable of multiple operations.

12. Equipped with a closed smoking hood to maintain clean air in the workshop, the equipment has an automatic cleaning function, which to some extent stabilizes the quality of soldering and extends the service life of the soldering iron tip.

　　3、 Advantages of multifunctional fully automatic soldering machine products:

1. Equipped with enclosed smoke hoods to maintain clean air in the workshop.

2. Customize high-strength soldering iron tips according to the product, with better welding effect, higher efficiency, and greater durability;

3. Trajectory solder joints can be created, added, or reduced, and can also be globally modified, making programming simpler and faster;

4. The card slot fixture design makes it very easy to remove, place, and replace products;

5. Tin feeding can be started at any time, effectively meeting various soldering processes and improving machine efficiency.

6. German imported WELLER soldering machine dedicated temperature control system, accurate temperature control, more durable;

7. Equipped with anti-collision function, effectively protecting products and equipment from damage due to misoperation;

8. The demonstration box provides a foolproof programming experience, allowing any novice to proficiently operate the equipment within 2 hours;

9. Can be paired with automated conveyor belts to achieve fully automated operations;

10. Dual user management mode, giving engineers and operators different permissions;

11. The parameters between solder joints can be flexibly interchanged, and compensation points can be automatically calculated;

12. The tin feeding function can be activated at any time to improve the operational efficiency of the machine;

13. It has functions such as spot welding and drag welding, and four soldering irons work simultaneously, greatly improving soldering efficiency;

14. Equipped with rotation correction function, optimization function, and misoperation correction function;

15. Import soldering parameter module, each point's speed can be independently debugged and set;

16. The repeated motion accuracy of ± 0.02mm ensures precise welding position during the production process;

17. The file name can be entered with Chinese and English numbers and saved.

　　Application scope of multifunctional fully automatic soldering machine:

Communication industry: Apple product data cable HDMI、RJ45、FPC、 High frequency head and other products are suitable for soldering this equipment;

Optoelectronic industry: LED displays, LED strips, LED rectifiers, LED ball lights, LED beads and other products are suitable for soldering this equipment;

Home appliance industry: Products such as air conditioning remote controllers, air conditioning control boards, computer speakers, and TV switch connectors are suitable for soldering this equipment;

In the automotive industry, products such as ignition switches, fuel sensors, navigation systems, and motorcycle flashlights are suitable for soldering this equipment;

Toy industry: Toy handle connectors, circuit boards, and other products are suitable for soldering this equipment.

　　Dinghua soldering machine has the following advantages:

1. Major:

We specialize in the research and production of automation equipment. After years of concentrated development, the company has 38 patents and 97 quality control processes. Our products are frequently upgraded and updated, always keeping pace with the industry's development.

　　2. Quality:

Product quality and user reputation are the foundation on which we rely for survival, so weShenzhen automatic soldering machineThe quality of our products is highly valued, and all electronic components are sourced from well-known brands such as Mingwei Power Supply, Omron Relays, imported PLCs, and silver slide rails. In addition, we strictly control the quality during the production process, implementing full process numbering throughout the manufacturing process. Each manufacturing department employee has their own number, and any process issues can be quickly traced back to the corresponding manufacturer. We adhere to the principle of "whoever manufactures the problem is responsible, whoever has stable quality is rewarded" and instill a quality first concept in every employee to ensure the stability and excellence of product quality.

　　3. After sales:

We have our own professional team of software and hardware engineers, as well as a team responsible for after-sales service. We can quickly analyze and handle any problems with software or hardware, and provide timely and guaranteed after-sales service.

　　4. Production environment:

Because our company was invested and built by Singaporean businessmen, we strictly implement the 6S system and focus on employee quality management. The first thing for all employees entering the factory is to receive professional skills and 6S requirements training. We believe that if we cannot even control the production environment well, how can we control the product quality well.

　　5. Employee structure:

Our company is a national high-tech enterprise, with 30% of the total number of engineers and technicians and 15% of the business team. More than 50% of the company's employees have a college degree or above, and the overall quality of the company's employees is relatively high.

　　6. Patent:

We have a total of 37 patents and were awarded the title of High tech Enterprise in 2015. We have also received numerous outstanding enterprise honor certificates from Shenzhen and the automation industry.

　　7. Customer:

We have numerous well-known corporate clients, such as Huawei, Samsung, Lenovo, Gree, Weichuangli, Honghe Technology, Fenda Technology, Songri Digital, Huayang Electronics, Decai Optoelectronics and other well-known enterprises in various industries.
